I have an instrument / analyser and require a list of compatible consumables
* Use of OEM name does not imply products are of OEM origin

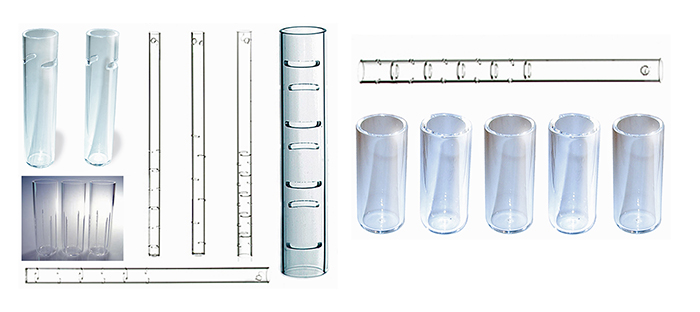

Ash crucibles and ash liners also incorporate products described as quartz liner, ash finger, sleeve insert or swarf crucible.
These useful products can vary in length, diameter, presence and direction of slits and be open ended or closed at one end. Whatever you and your laboratories preference we hope that this summary can help you find the product you need.
|
Part No. |
Description |
Outer Diameter (mm) |
Length (mm) |
Slits |
|
C1090 |
Sleeve Insert Open End Transparent Silica 13 x 205mm |
13.0 |
205 |
Horizontal |
|
C1096 |
Sleeve Insert Open Both Ends Transparent Silica 13mm x 220mm |
13.0 |
220 |
Horizontal |
|
C1098 |
Sleeve Insert Open Both Ends Transparent Silica 06118 13 x 220mm Pack of 5 |
13.0 |
220 |
Horizontal |
|
C1120 |
Quartz liner 25204510 13 x 230mm |
13.0 |
230 |
Horizontal |
|
C1093 |
Sleeve Insert Open Both Ends Transparent Silica 13 x 235mm |
13.0 |
235 |
Horizontal |
|
C1123 |
Sleeve Insert Open Both Ends Transparent Silica 13 x 250mm |
13.0 |
250 |
Horizontal |
|
C1050 |
Sleeve Insert Open Both Ends Transparent Silica 15 x 180mm Europa |
15.0 |
180 |
Horizontal |
|
C1094 |
Sleeve Insert Open Both Ends Transparent Silica 15 x 220mm Europa |
15.0 |
220 |
Horizontal |
|
C2025 |
Slitted Sleeve Transparent Silica 2400 Series 19.5 x 100mm |
19.5 |
100 |
Horizontal |
|
Part No. |
Description |
Outer Diameter (mm) |
Length (mm) |
Slits |
|
C1004 |
Swarf Crucible Transparent Silica 25204500 7 x 17mm Pack of 5 |
7.0 |
17 |
No |
|
C1005 |
Swarf Crucible Transparent Silica 25204400 7 x 35mm Pack of 5 |
7.0 |
35 |
No |
|
C4506 |
Quartz Crucible 603-710 12 x 33mm (With pimple on base) Pack of 24 |
12.0 |
33 |
No |
|
C1016 |
Swarf Crucible Transparent Silica for C1069 C1072 C1078 13 x 30mm Pack of 5 |
13.0 |
30 |
No |
|
C1091 |
Sleeve Insert Closed End Transparent Silica 13 x 205mm |
13.0 |
205 |
Horizontal |
|
C1052 |
Sleeve Insert Transparent Silica 1108/1110 13 x 220mm |
13.0 |
220 |
Horizontal |
|
C1051 |
Sleeve Insert Transparent Silica 13 x 235mm |
13.0 |
235 |
Horizontal |
|
C1097 |
Sleeve insert 245mm Closed one end 13 x 245mm Pack of 2 |
13.0 |
245 |
Horizontal |
|
C1065 |
Silica Swarf Crucible Transparent 13 x 250mm Silica equiv 25205000 |
13.0 |
250 |
Horizontal |
|
C1006 |
Swarf Crucible Transparent Silica for C1022 & C1024 14 x 30mm Pack of 5 |
14.0 |
30 |
No |
|
C1053 |
Removable Swarf Crucible for C1022 & C1024 Transparent Silica 14 x 60mm Pack of 5 |
14.0 |
60 |
Horizontal |
|
C2037 |
Swarf Crucible Transparent Silica 14 x 95mm |
14.0 |
95 |
No |
|
C2030 |
Sleeve Insert Transparent Silica NA1500(1) 15 x 220mm |
15.0 |
220 |
Horizontal |
|
C1007 |
Swarf Crucible Transparent Silica NA1500 Series 1 16 x 35mm Pack of 5 |
16.0 |
35 |
No |
|
C4007 |
Crucible Transparent Silica 17 x 20mm Pack of 5 |
17.0 |
20 |
No |
|
C3054 |
Ash crucible Quartz 38.00-1290 22.5 x 60mm |
22.5 |
60 |
Horizontal |
|
C4046 |
Crucible Transparent Silica 529-026+ 25 x 41mm Pack of 50 |
25.0 |
41 |
No |
|
C4210 |
Silica (Quartz) Crucible 25mm x 64mm Leco FP428 25 x 64mm Pack of 50 |
25.0 |
64 |
No |
|
C4048 |
Crucible Transparent Silica Vertical Slit 25 x 75mm Pack of 25 |
25.0 |
75 |
Vertical |
If you cannot find what you are looking for here, our friendly sales team are available to advise you on compatible products for your analyser.
