Elemental Microanalysis News

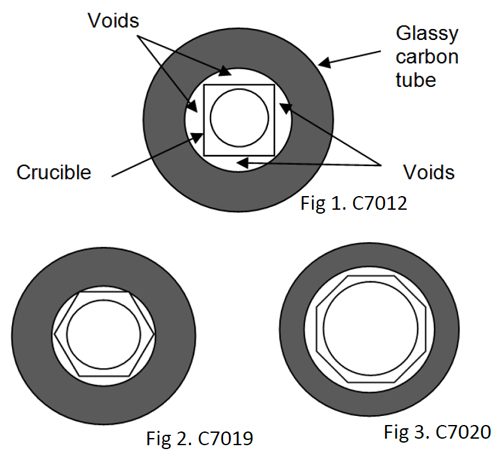

Using a hexagonal crucible reduces this wasted space, allowing a larger internal diameter of the crucible and hence more ash capacity. The chance of the capsule not dropping cleanly into the bore of the crucible is also reduced.   See Fig. 2

Increasing the length of the crucible from 30 to 40mm allows a further increase in volume of the crucible, the combined result being a doubling of the volume available for ash collection.

For 9mm ID tubes, we can use an octagonal crucible without restricting the carrier gas flow thus increasing the capacity further.     See Fig. 3

These products are available to order from our ISO 9001 factory online, by email, telephone or fax.

Elemental Microanalysis offers extensive knowledge of analysis, 40 years of experience and a worldwide reputation for excellence.
